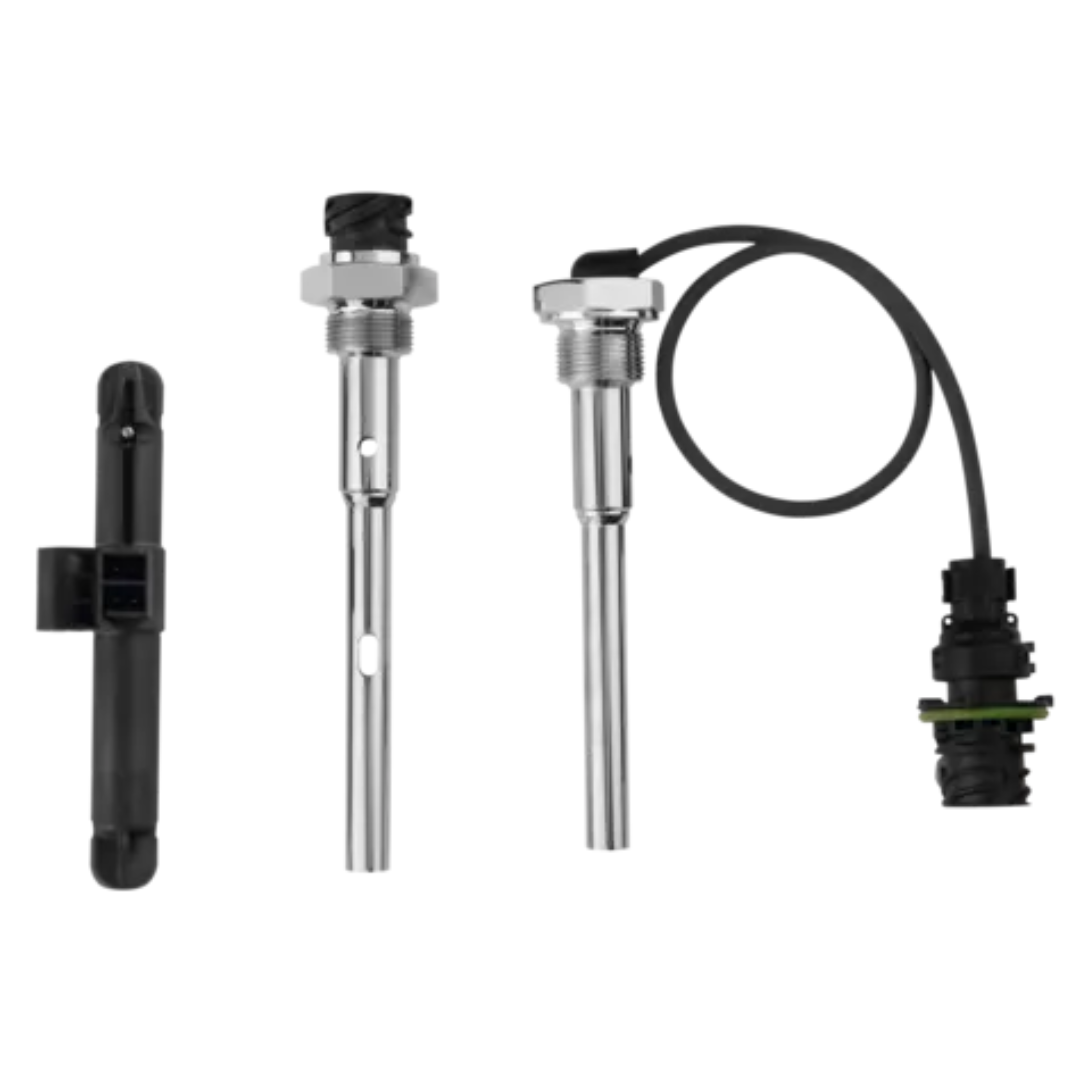

Level and temperature probes

The temperature measurement using thermocouples requires the temperature of the cold junction to be measured in addition to the thermoelectric voltage. The cold junction temperature is acquired at the connection terminals of the evaluation electronics.

The measuring inserts for screw-in RTD temperature probes with a form B terminal head are used as replacements. They are suitable for RTD temperature probes according to data sheet 902020 and 902820. Sheath measuring inserts are available for instances when the length of the measuring insert is 800 mm or longer.

Thermocouples are designed as replacement elements for thermocouples according to DIN 43733. Alternatively, for special applications the thermocouples can be used to measure temperature directly.
