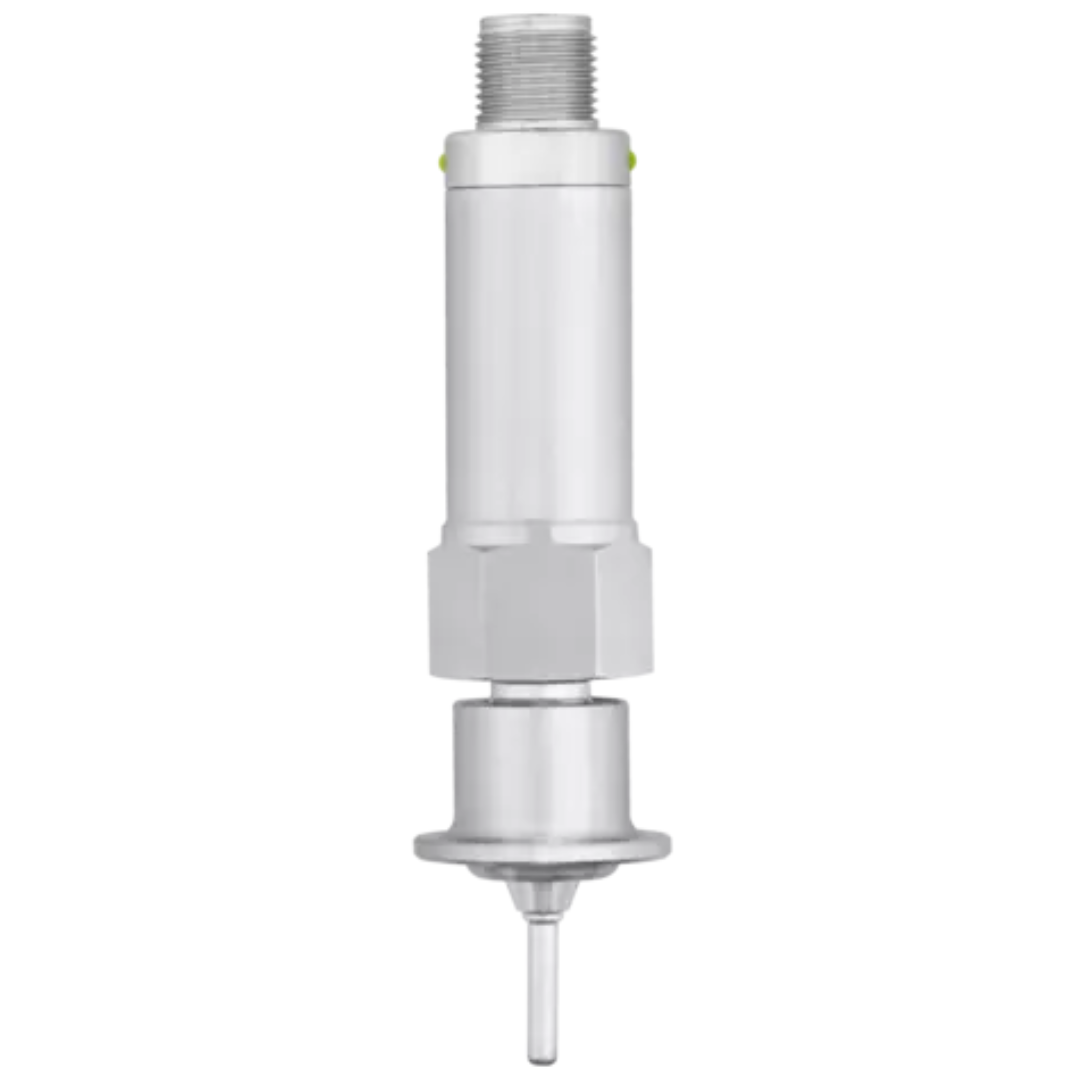

JUMO dTRANS T1000
The temperature sensor is equipped with an IO-Link interface that supports bidirectional communication (e.g. to exchange the process data, parameters, diagnostic information, and status messages) – ideal for connecting to automation systems in plant and mechanical engineering.
RELATED PRODUCTS
Cylinders Series 40K
Double acting, cushioned, magnetic
Ø 160 - 200 - 250 - 320 mm
Series 40K cylinders comply with the ISO 15552 standard and can be assembled with the entire range of standard accessories.
A permanent magnet on the piston of these cylinders is able to send, through proximity switches mounted on the cylinder sliding axis, electrical signals to indicate its position.This series is normally equipped with end-stroke cushioning which can be adjusted through a screw on the end block.
Short-stroke cylinders Series QL
Series QL: double-acting, magnetic and non magnetic
Ø 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 mm
Series QL short-stroke cylinders are available in seven different bore sizes from 12 mm to 100 mm and are designed to cover a wide range of application needs, from light duties in packaging or assembly through to the demanding requirements of handling components for woodworking.
The low weight of the aluminium body and the compact design makes this cylinder range quick and easy to install, even in confined or awkward spaces.
Series QL is available in double acting, magnetic and non-magnetic designs.
A full range of accessories such as standard, large and narrow mounting feet enhance the applicability and usability of the range.
Short-stroke cylinders Series QN
Single-acting, non magnetic
ø 8, 12, 20, 32, 50, 63 mm
Series QN single-acting short-stroke cylinders have been designed so that they can be installed in very small spaces.
Due to the compactness and sturdiness of these cylinders, they are mainly suitable for positioning and locking.The available strokes are indicated in the tables.
Short-stroke cylinders Series RPA
Double-effect, magnetic
With hollow through rod and mounting stud
Bores: 20 and 30 mm
The Series RPA short stroke cylinders are double acting actuators with aluminium hollow through rod and mounting stud. Available in two sizes, Ø 20 and Ø 30 mm, with different strokes and dimensions of the mounting stud, these actuators are equipped with the non-rotating function of the rod.
The Series RPA are prepared for the mounting of magnetic sensors (Series CSD), in fact, on the external profile, along the cylinder tube, you can find sensor positioning slots.
Their compact and light design together with the adopted technical solutions make these cylinders suitable to be used, combined with suction pads, in End Of Arm Tooling (EOAT) systems, especially in the sector of plastic injection moulding.
Stopper cylinders Series ST
Single and double-acting, magnetic, non-rotating
Sizes 20, 32, 40, 50 mm
The Series ST Stopper cylinders are pneumatic actuators with rod, complying with UNITOP and ISO 21287 standards, where rod and bushing have been specifically enlarged to ensure high resistance to radial loads and shocks.
These cylinders are available in two versions, double-acting and single-acting, and with rear spring.
The non-rotating rod version is also available.
The detection of the piston position is enabled by means of proximity switches (Mod. CST or CSH) which are mounted in slots along three sides of the cylinder profile.
It is possible to cover the slots with a proper profile (Mod. S-CST-500).
The high resistance to shocks and radial loads and the easy mounting makes Series ST particularly suitable for use in transport/conveyor lines where it is required to stop the transit of workpieces and workpiece-holder pallets.
