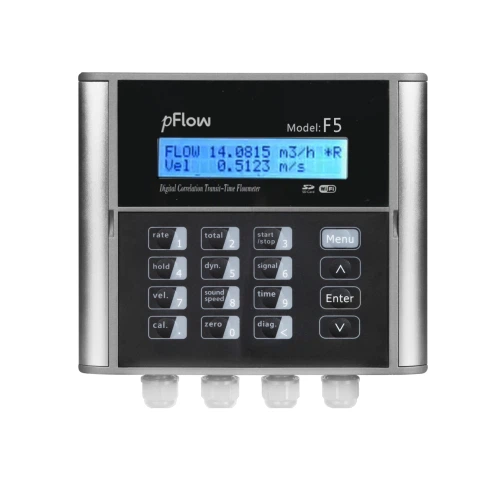

Gentos pFlow F5-CP037 Ultrasonic Flowmeter
The F5 Series Ultrasonic Flowmeter is a high-precision, reliable flow measurement device designed for various industrial applications. It features advanced ARM.FPGA technology and low-voltage pulse transmission, ensuring accurate measurements with ±1.0% error margin for flow rates up to 5.0 m/s. The user-friendly interface supports multiple units and output modes, including 4~20mA and frequency signals. Equipped with RS485 and optional WIFI connectivity, it enables seamless data transmission and remote monitoring. With daily, monthly, and yearly totalization, the F5 also offers extensive data storage and automatic offline correction. Suitable for diverse pipe materials and fluids, it is an ideal choice for modern flow measurement needs.
Specifications
| Performance specifications | |||
| Flow range | 0 ~ 16 ft/s ( 0 ~ 5.0 m/s ). | ||
| Accuracy | ± 1.0 % of measured value , velocity＞0.5m/s | ||
| Pipe size | Clamp-on: 1”~ 48″(25mm~1200mm) | ||
| Fluid | Water | ||
| Pipe material | Carbon steel, Stainless steel, PVC… | ||
| Function specifications | |||
| Outputs | OCT Pulse output: 0~5000Hz
Analog output: 4~20mA, Max load750 Ω |
||
| Communication interface | RS485 MODBUS | ||
| Power supply | 10~36VDC/1A | ||
| WIFI | Frequency range: 2.412~2.484GHz | ||
| Transmitting power: 802.11b 16±2 dBm ,802.11n 13±2 dBm ,802.11g 14±2 dBm | |||
| Working temperature: -20~85℃ | |||
| 40m transmission distance in open environment40 | |||
| Keypad | 16(4×4)key with tactile action | ||
| Display screen | 20×2 lattice alphanumeric, back lit LCD | ||
| Temperature | Transmitter:14℉~122℉(-10℃~50℃)
Transducer:32℉~176℉(0℃~80℃) |
||
| Humidity | 0 to 99% RH,non-condensing | ||
| Physical specifications | |||
| Transmitter | PC/ABS,IP65 | ||
| Transducer | Encapsulated design, IP68 | ||
| Transducer cable | Standard cable length:30ft(9m) | ||
| Weight | Transmitter: approximately 0.7kg
Transducer: approximately 0.4kg |
||
