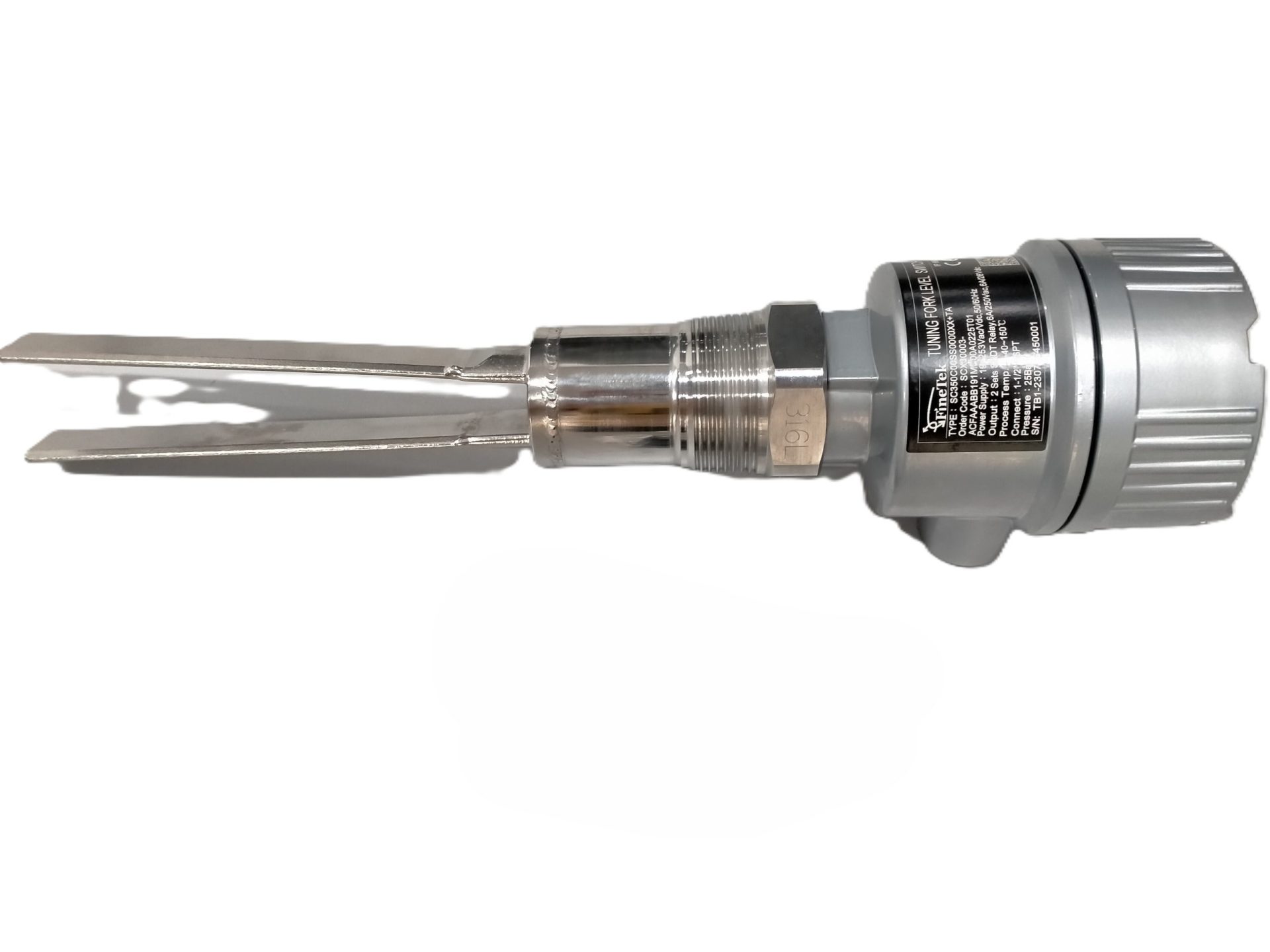

FINETEK SCX30003-ACFAAABB191MC00A0225T
FINETEK TUNING FORK LEVEL SWITCH
Specifications
MODEL: STANDARD
CERTIFICATE: NONE, M20 x .5
CONSTRUCTION: STANDARD (150 DEGREE C @ 50 DEGREE C)
FORK LENGTH: 155MM
HOUSING: ALUMINIUM
HOUSING COVER: NO LENS
POWER SUPPLY: 19-253VAC/VDC, 50/60HZ, TWO RELAY OUTPUT
CONNECTION: 1-1/2″ BSPT
PROBE MATERIAL: SUS316L
COATING MATERIAL: NONE
SURFACE ROUGHNESS: RA, = 3.2um
PROBE LENGTH: 255MM
RELATED PRODUCTS

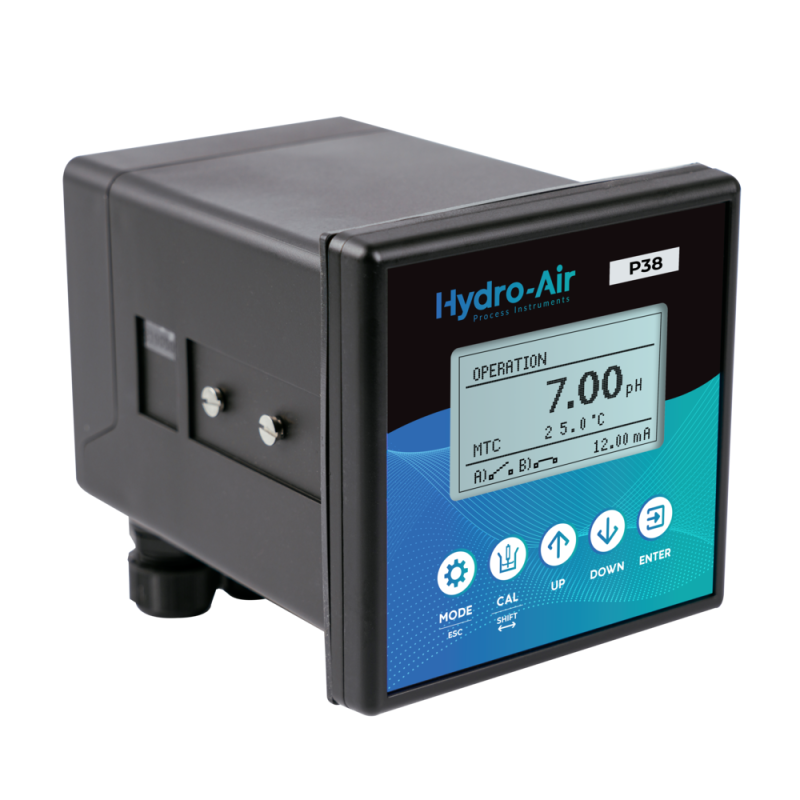

Hydro-Air P38 pH/ORP Analyzer
The P-38 series is our state-of-the-art analyzer for pH and Oxidation Redox Potential (ORP). Striving to realize the unique qualities and simplicity of the displays are the keys to an efficient operation. Hence, P-38 is the right analyzer for a wide range of users’ experience.
The operation and calibration can be performed easily with a friendly step-by-step interface. Besides, the controller is well-equipped with analogue output and Field Bus Connection RS-485 communication.
The P-38 offers you the best features you need for the reliable treatment of industrial and process water, drinking water as well as wastewater.
LABOM GA2200
Inline temperature transducer with Pt100 for pipe mounting
Inline temperature transducers allow a dead-zone free measuring of the pipe wall temperature. Measuring is performed without cross-sectional alterations and without contact of the medium with the measuring resistor. A variety of screwings are available for different applications.

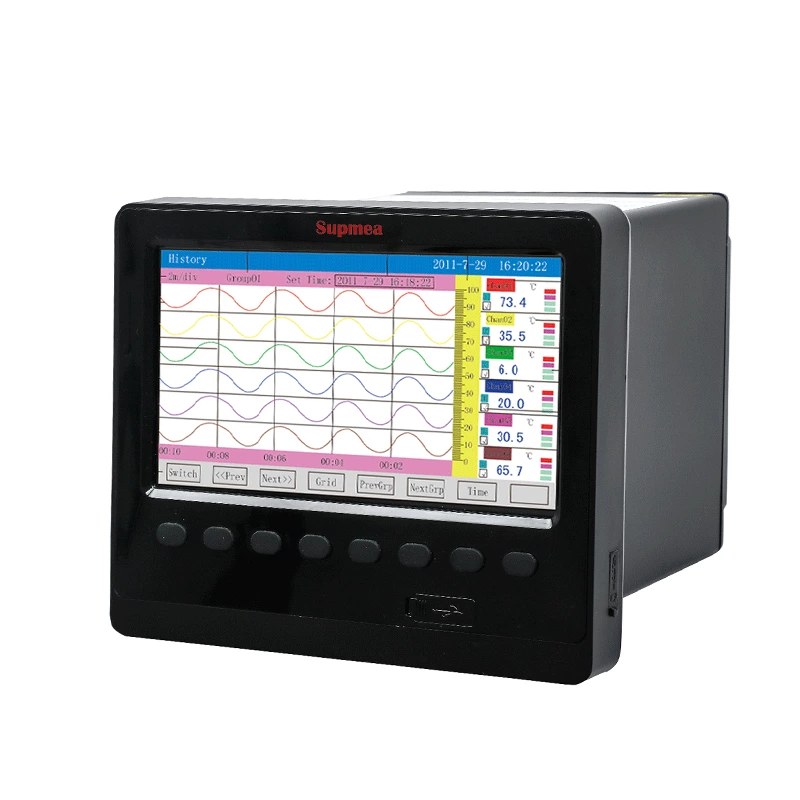

Supmea SUP-R6000C Paperless Recorder
