DIN-A-MITE® B
The DIN-A-MITE® B is a low-cost, highly compact and versatile solid state electric heat controller. The DIN-A-MITE B capabilities include single-phase and three-phase zero-cross switching up to 40 and 22 amperes, respectively at 600VAC (see rating curve). This electric heat controller’s design includes proper heat sinking and terminations simplifying integration into applications. DIN-rail and back panel mounting is standard on this electric heat controller. The DIN-A-MITE controller is also mercury free. Variable time base, 4-20mA process control or VAC/VDC input contactor versions are available. A shorted silicon controlled rectifier (SCR) alarm option is also available. All configurations are model number dependent and factory selectable. This power controller also includes 200KA short circuit current rating (SCCR) tested up to480VAC to prevent arc flash with required fusing.
RELATED PRODUCTS
DIN-A-MITE® C
The DIN-A-MITE C silicon controlled rectifier (SCR) power controller provides a low cost, compact and versatile solid state controller option for controlling electric heat. This solid state controller is designed and manufactured with the quality features expected from Watlow. DIN-rail and standard panel mounting plus a cabinet thru-wall mount version are available. Basic features of the solid state controller include single-phase, three-phase/two leg, and three-phase/three leg, 24-600VAC operation. Current switching capabilities range from 30 to 80A depending on the model ordered. Variable time base, linear voltage and current process control or VAC/VDC input contactor versions are available. Single-phase, phase angle firing and current limiting are also available. All configurations are model number dependent and factory selectable. This solid state power controller includes 200KA short circuit current rating (SCCR) tested up to 480VAC to prevent arch flash with required fusing.
DIN-A-MITE® D
The DIN-A-MITE® D silicon controlled rectifier (SCR) power controller provides an inexpensive, versatile product for controlling heat in an efficient package. This SCR controller is designed and manufactured with the quality features expected from Watlow. The back panel mounting matches the footprint of the industry standard mercury displacement relay. There is no need to worry about mercury; the DIN-A-MITE controller is mercury free. The DIN-A-MITE Style D is capable of zero-cross switching up to 100 amperes single-phase, at 600VAC at 86°F (30°C), depending on the model selected. Two or three controllers used together can control three-phase. It is totally touch-safe and includes standard back panel mounting, on-board semiconductor fuses (accessible from the front) and a current transformer option for external load current monitoring. An optional “shorted SCR detector” feature is available on some models. This model is UL®508 listed and C-UL®and CE certified. These agency approvals are ideal for those panel builders that require agency approvals on their panels and cabinets. Variable time base, 4-20mA process control, or VAC/VDC input contactor options are available. All configurations are model number dependent and factory selectable. This power controller also includes 200KA short circuit current rating (SCCR) tested up to 480VAC to prevent arch flash with required fusing.
F4T® Temperature And Process Controller
Now featuring e-mail and text alerts. Notify users of an event that has occurred such as a specific profile or step within a profile, alarm condition, limit condition or analog input error. The F4T temperature & process controller from Watlow offers a wide range of field removable I/O modules for maximum design flexibility. Configurations can be custom tailored to meet the scaling needs of a tremendous range of equipment and applications while providing exactly the hardware types required for compatibility. The F4T controller also features a 4.3 inch, color, graphical touch panel. Combining power, flexibility and functionality, this new controller offers unmatched versatility, and its best-in-class ease of use could very well make user manuals a thing of the past.

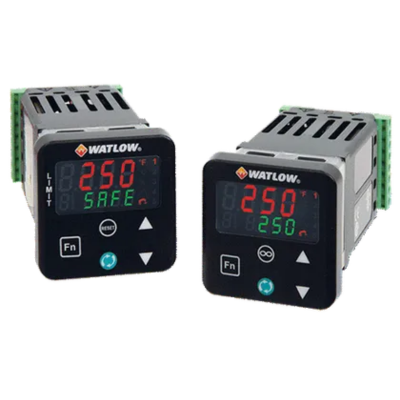

PM LEGACY™ Panel Mount Controller
The Watlow® LEGACY SERIES panel mount controller is an industry-leading PID controller that allows optimal performance utilizing simple control and menu functionality without complex features. It is ideally suited for basic applications and usage levels. The LEGACY includes one universal input and an option for up to two outputs and is available in 1/16 DIN and 1/32 DIN panel mount packages. It can be ordered as a PID process controller or as a dedicated over and under-temperature limit controller.
PM PLUS™ PID & Integrated Limit Controller
Watlow’s PM PLUS™, the enhanced EZ-ZONE® PM, is now more intuitive and features an enhanced interface for easier programming and readability with a SMOOTH-TOUCH™ keypad creating an industry leading user experience. The PM PLUS is backwards compatible with legacy EZ-ZONE PM controllers but offers many user upgrades including an intuitive menu flow allowing the controller to be easily configured. It also continues to offer the industry leading Bluetooth® connectivity with the EZ-LINK™ mobile app for remote access capability and full descriptions of parameters and error codes. The PM PLUS improves the user experience by reducing the complexity at the front of the control while eliminating the dependency of cables when configuring the product. Like the original EZ-ZONE PM, the PM PLUS can be ordered as a PID controller, or an integrated controller with multiple functions combined into one.
