ARL5200 Series
ARL5200 series non-contact radar level transmitter based on Frequency Modulated Continuous Wave (FMCW) technology and smart algorithms to maximize measurement accuracy, reliability and signal strength, and enables it to deliver superior measurement reliability with greater signal-to-noise ratio, even in small tanks and challenging fast-filling vessels. Non-contacting radar technology is ideal for a wide range of applications, and is unaffected by process conditions such as density, viscosity, temperature, pressure, Vapours, Conductivity, etc. Ideal for level measurement in complex applications such as liquids, slurries, solids, particles and dust.
Features
- Unique FMCW radar technology for optimal performance
- High frequency 80 GHz fast-sweep for application flexibility
- Measuring range up to 150 m (492 ft), high accuracy of +/-2 mm
- Non-contact radar, free of wear and pollution
- Anti-interference of noise, vapor, dust, foam, vacuum, etc.
- Small beam angle & focused energy to enhance anti-interference ability
- The measurement of low permittivity constant media is more stable
Specification
| Measure Principle | : | Frequency Modulated Continuous Wave(FMCW) |
| Frequency Range | : | 77-82 GHz |
| Measure Range | : | 0-150 m |
| Resolution | : | 1 mm / 0.003 ft |
| Repeatability | : | +/-0.5 mm |
| Accuracy | : | +/-2 mm…+/-5 mm |
| Blind Area | : | 0.01 – 0.03 m |
| Beam Angle α | : | 14° / 8° / 6° / 3° |
| Sensor Update Rate | : | >1s (Dependent on configuration setting) |
| Maximum Level Rate | : | Max. 200 mm/s |
| Ambient Temp. Effect | : | +/-1 mm (+/-0.04 in.) / 10 K |
| Material | ||
| Antenna | : | PTFE / PEEK |
| Process Connection | : | PTFE / S.S. 304 / S.S. 316 / S.S. 316L / |
| S.S + PTFE | ||
| Housing | : | Aluminum Alloy (Standard) |
| : | S.S. 304 (Option) | |
| O-ring | : | FKM |
| Process Connection | : | Thread (3/4″ NPT, G3/4″, 1-1/2″ NPT, |
| G1-1/2″, G3″, 3″ NPT) | ||
| : | Flange (DN50-DN200) | |
| : | Universal Flange (DN100-DN200) | |
| Protection Class | : | IP67 |
| : | Explosion Proof, Ex d IIC T6 | |
| : | Intrinsically Safe, Ex ia IIC T6 |
| Display | : | 4-6 Digit LCD with Bargraph |
| Keypad | : | 4 internal keys for programming |
| Unit | : | ft, in, m, cm, mm |
| Ambient Temperature | : | -40~80 °C |
| Process Temperature | : | -40~260 °C (Max.) |
| Process Pressure | : | -1.0~25 bar G (Max.) |
| Humidity | : | 0-100% RH, non-condensing |
| Max. Cable Length | : | 40 m (For single cavity housing) |
| Power Supply | : | 15-28 VDC (2-Wire) |
| : | 24 VDC +/-10% (4-Wire) | |
| : | 90-253 VAC, 50 / 60 Hz (4-Wire) | |
| Power Consumption | : | 22.5 mA / 1W (Max.) (2-Wire) |
| Current Output | : | 4-20 mA (2-Wire, 4-Wire) |
| Load | : | Rohm=(VDC-15) * 50 |
| Resolution | : | 1.6 μA |
| Damping | : | 0-999 s |
| Communication | : | HART signal (Compatible) |
| : | RS485 (MODBUS Protocol) | |
| Data Storage | : | Operation parameters and totalization |
| date are stored by EEPROM for more | ||
| than 10 years | ||
| EMI / RFI Effect | : | Follow SAMA PMC 33.1 from 20 to 1000 |
| MHz and for field strengths up to 30 V/m | ||
| Vibration Resistance | : | 2g at 10-1000 Hz according to IEC 61298-3 |
| Cable Entry | : | Standard: M20, Option: 1/2″ NPTF |
RELATED PRODUCTS
AMC3200DF Series
The AMC3200DF Series converter features dual frequency excitation. The reduced noise and improved signal to noise ratio make it more ideal for slurry measurement in various industries such as papermaking and chemistry. The unit features multiple display parameters including flow rate, flow total, diagnostics, programming and troubleshooting. It is equipped with Bluetooth, HART and MODBUS communication functions.
AMC3200E Series

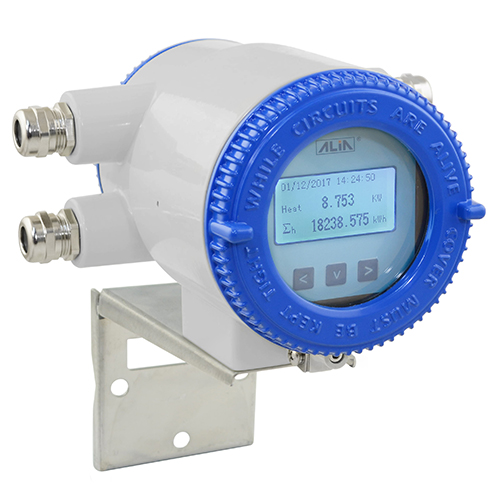

The ALIAMAG AMC3200E Series is a heat meter converter of electromagnetic flowmeter that can be paired with any of ALIA AMF series sensors. The unit features multiple display parameters including flow rate, energy, flow total, energy total, supply temperature, return temperature, diagnostic, programming and troubleshooting. It is equipped with MODBUS, Bluetooth and BACnet protocol.
