ALIADP_D Series

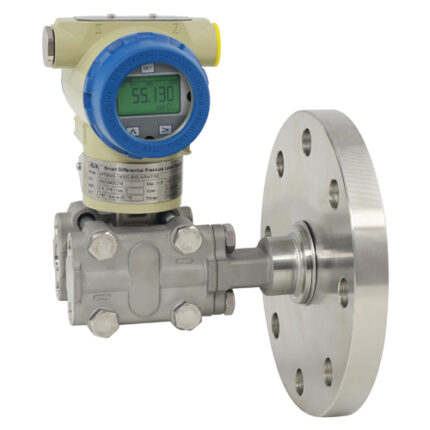

The D Series is a diaphragm seal product combining APT8000 / APT9000 / APT9000L transmitter, which is designed for the high-viscosity / granular / high-temp. / high-corrosivity situation. D series diaphragm seal assembles with Alia pressure / DP transmitter to form direct-mount / capillary-connections style.
Features
- The maximum temperature comes up to 280 °C
- Multiple connection modes – Flange style / Tri-Clamp style
- Multiple diaphragms / alternative connection material
- Vegetable oil can be used as fill fluid for food industry
- Extreme hot and cold temperatures
- Stainless Steel with PPC coating capillary
- IDF Tri-Clamp or union screw connection for food industry
- Oil-free treatment & water-free treatment
- Fast and dynamic response
- Improved performance, increased accuracy and great stability
Specification
| Process Fluid | : | Liquid, Gas, Vapor |
| Application | : | Liquid Level, Differential Pressure, |
| Gauge Pressure, Absolute Pressure | ||
| Material | ||
| Flange | : | Carbon steel |
| : | Stainless Steel 304 | |
| : | Stainless Steel 316 | |
| Diaphragms | : | Stainless Steel 316L |
| : | Hastelloy B / Hastelloy C | |
| : | Tantalum | |
| : | PTFE-coated Tantalum Diaphragm | |
| Extented Tube | : | Stainless Steel 316 |
| Capillary | : | Stainless Steel with PVC coating |
| Flange Size | : | 40 mm, 50 mm, 80 mm, 100 mm |
| : | 1-1/2″, 2″, 3″, 4″ | |
| Process Connection | : | Flange |
| Flange Rating | : | JIS 10K / JIS 20K / JIS 40K |
| : | ANSI 150# / ANSI 300# / ANSI 600# | |
| : | DIN PN10 / PN16 / PN25 / PN40 | |
| : | Tri Clamp (DIN32676 / ISO2852) | |
| Extension Length | : | 2″, 3″, 4″ |
| Accuracy | : | +/-0.075% of Span |
| Stability | : | +/-0.15% of URL for 2 years |
| Installation Style | ||
| Direct-mount | : | APT8000 only |
| One-sided Capillary | : | APT8000 / APT9000 / APT9000L |
| Two-sided Capillaries | : | APT9000 only |
| Capillary Length | : | 1.0-10 m |
| Max. Temperature | ||
| Direct-Mount | : | -20~130 °C |
| Remote Diaphragm | : | -40~280 °C |
| Max. Pressure | : | 8.0 MPa |
| Fill Fluid and Maximum | : | Silicone Oil (Max. Temperature 130 °C) |
| Temperature | : | HT Silicone Oil (Max. Temperature 280 °C) |
| : | Fluorine Oil (Max. Temperature 160 °C) | |
| : | Vegetable Oil (Max. Temperature 130 °C) | |
| Ambient Temperature | : | +/-0.18%~+/-0.5% of span per 20 °C |
| Time Response | : | Less than 1.12 seconds |
| Options | ||
| Water-free Treatment | : | Wetted parts are water-free treated in |
| manufacturing | ||
| Oil-free Treatment | : | Wetted parts are oil-free treated in |
| manufacturing |
