Proportional pressure regulator and proportional flow valve Series MX-PRO
Regulator and valve ports (Single and Manifold): G1/2
Regulator: with built-in pressure gauge or G1/8 threaded ports
Valve: without pressure gauge
Regulator: with built-in pressure gauge or G1/8 threaded ports
Valve: without pressure gauge

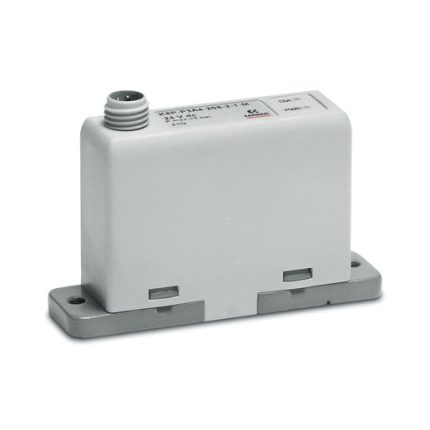

Series MX-PRO electronic proportional pressure regulator is the result of combining advanced technology of Series K8P electronic proportional micro regulator, with reliability and high performance of Series MX2 modular regulators.
This new regulator ensures high precision in pressure regulation, high flow rate and low consumption.
Moreover, it can take the most of Series MX ease of assembly to provide particularly compact Manifolds.
This new regulator ensures high precision in pressure regulation, high flow rate and low consumption.
Moreover, it can take the most of Series MX ease of assembly to provide particularly compact Manifolds.
RELATED PRODUCTS

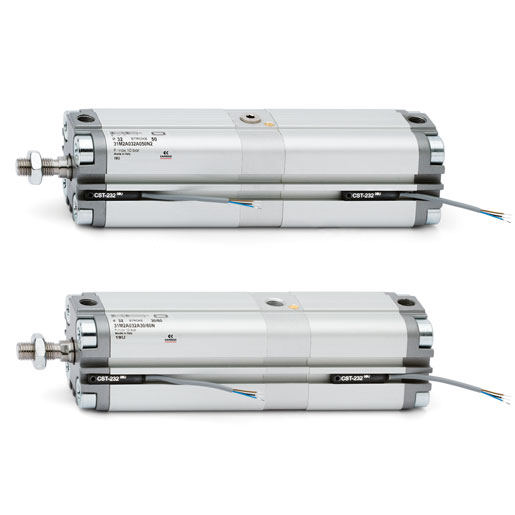

Compact cylinders, Tandem and Multi-position versions Series 31
Double-acting, magnetic
Ø 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 mm
The compact dimensions allow Series 31 cylinders to be installed within very small spaces. These cylinders are suitable for use with feet, flange and trunnion mountings.
In order to complete the compact cylinder series, two new versions have been introduced: tandem and multi-position. The new Tandem version with 2, 3 or 4 stages generates a thrust force which is 2, 3 or 4 times that of the normal cylinder (standard traction force).
The Multi-position version allows a maximum of 3 different positions which are determined by the stroke of the individual actuators.

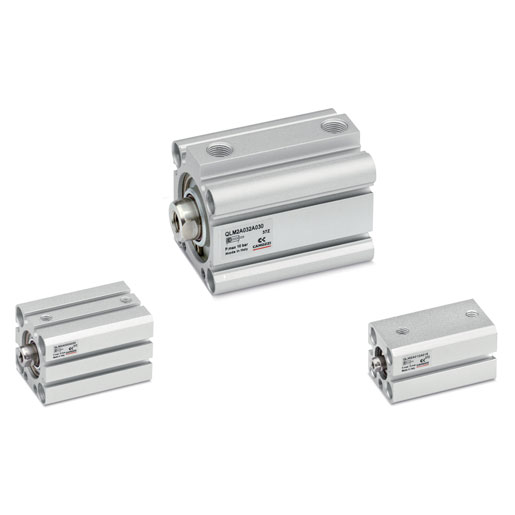

Short-stroke cylinders Series QL
Series QL: double-acting, magnetic and non magnetic
Ø 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 mm
Series QL short-stroke cylinders are available in seven different bore sizes from 12 mm to 100 mm and are designed to cover a wide range of application needs, from light duties in packaging or assembly through to the demanding requirements of handling components for woodworking.
The low weight of the aluminium body and the compact design makes this cylinder range quick and easy to install, even in confined or awkward spaces.
Series QL is available in double acting, magnetic and non-magnetic designs.
A full range of accessories such as standard, large and narrow mounting feet enhance the applicability and usability of the range.

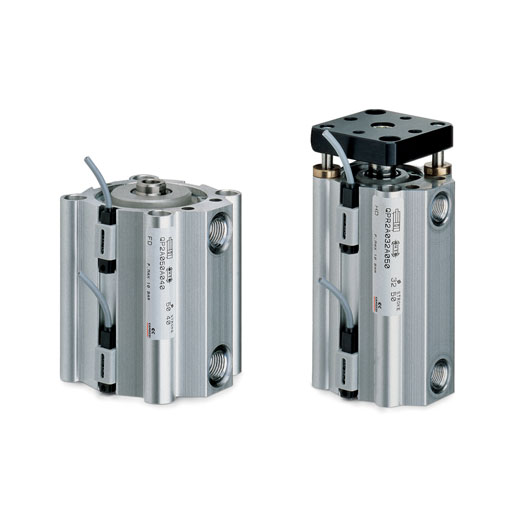

Short-stroke cylinders Series QP – QPR
Series QP: single and double-acting, magnetic
Series QPR: double-acting magnetic, non-rotating
Ø 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 mm
Series QP - QPR cylinders are available in 10 bore sizes, from Ø 12 to Ø 100.
Their compact dimension allows the installation in small spaces.
Because of their particular construction, they can be mounted by means of feet or trunnion.
The guides are manufactured in the external profile parallel to the sliding axis on three sides.
These are used to locate the switches that sense the piston position.
The non rotating guides make the QPR suitable for supply operations and for handling equipment.

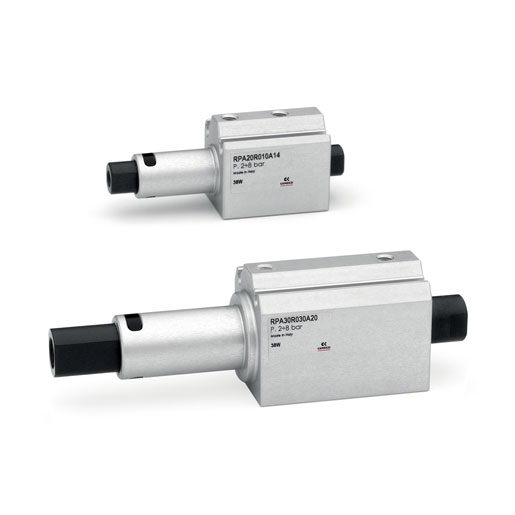

Short-stroke cylinders Series RPA
Double-effect, magnetic
With hollow through rod and mounting stud
Bores: 20 and 30 mm
The Series RPA short stroke cylinders are double acting actuators with aluminium hollow through rod and mounting stud. Available in two sizes, Ø 20 and Ø 30 mm, with different strokes and dimensions of the mounting stud, these actuators are equipped with the non-rotating function of the rod.
The Series RPA are prepared for the mounting of magnetic sensors (Series CSD), in fact, on the external profile, along the cylinder tube, you can find sensor positioning slots.
Their compact and light design together with the adopted technical solutions make these cylinders suitable to be used, combined with suction pads, in End Of Arm Tooling (EOAT) systems, especially in the sector of plastic injection moulding.

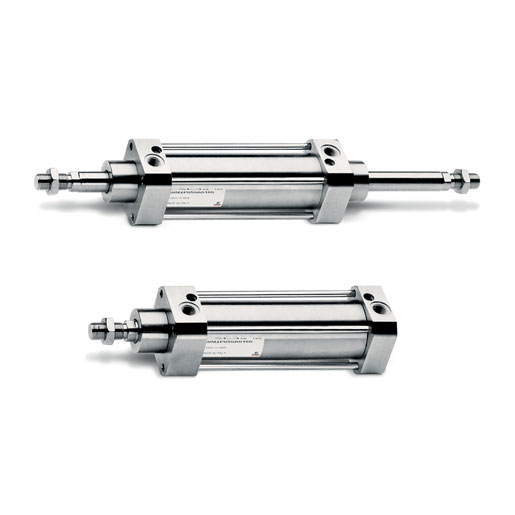

Stainless steel cylinders Series 90
